Welcome to Euklid, the 5-axis-milling pioneers!


A revolution in accuracy and economy

In the past, gearing was of little importance for CAD/CAM systems. Euklid CAD/CAM AG now offers an easy to use module for the economical manufacturing of gear wheels on universal milling machines, e.g. for prototype wheels, for special purpose wheels or as replacements in a large gear box. And in all these cases with uncompromising accuracy.

Software requirements

Requirements of the entire system. Manufacturing gear wheels is an extremely demanding process since high precision is required. The user, therefore, asks for a system which supports him reliably and effectively. And don't underestimate the fact that EUKLID GearCAM is your partner, with immense experience. Since the beginning of CAD/CAM Euklid has played an important role as a pioneer in high accuracy and complex tasks.

Besides the software, other points play an important role to achieve the highest quality level, as for example:

  • Quality of the machine
  • Workpiece material
  • Tool selection
  • Selection of best cutting conditions

With pleasure we will help you to find the optimum conditions. Our support assists you at any time to choose the most suitable tool or to select most adequate cutting conditions.

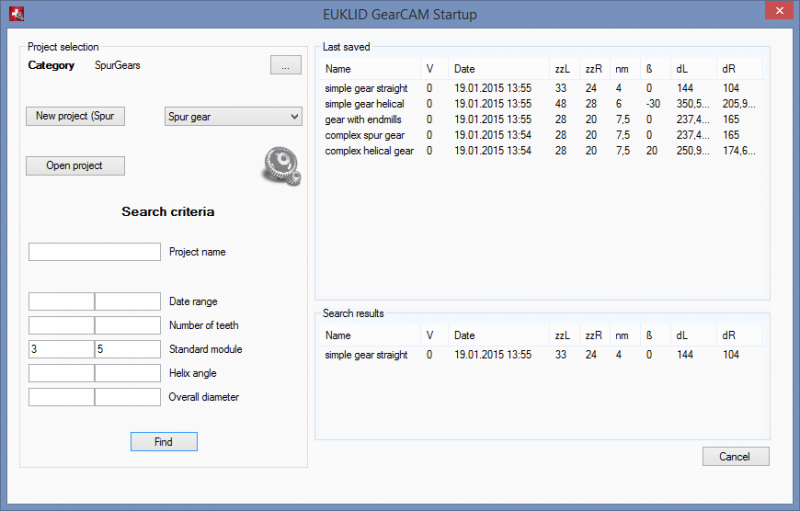

Managing gear wheel data

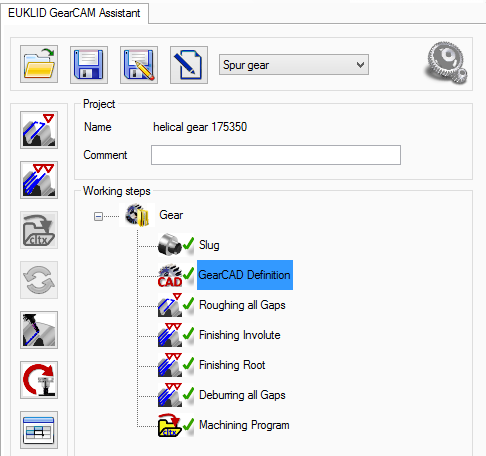

It's true for the gear, too: No need to re-invent the wheel. CAD and CAM - EUKLID GearCAM manages all project data in their proper environment, including input data, data for the measuring machine, protocols for the workshop and NC programs. Once built up successfully, a project file may serve as a template for similar projects, allowing the user to make quick adaptations with full control.

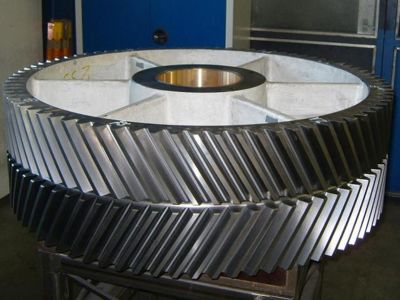

Gear wheels of a specific type are very similar in many aspects. Whether they follow DIN or US standards, are spur or bevel gears, herringbone with or without groove, new projects can be recalculated quickly by editing a few parameters of an existing NC program. This is how EUKLID GearCAM offers efficient management of project data.
